Hydraulic Relief Valves for Compact Hydraulic Power Unit Unloading Vlaves 75mpa
Hydraulic Relief Valves for Compact Hydraulic Power Unit Unloading Vlaves 75mpa
Regular price
$35.40
Regular price
$48.80
Sale price
$35.40
Unit price
per
Couldn't load pickup availability

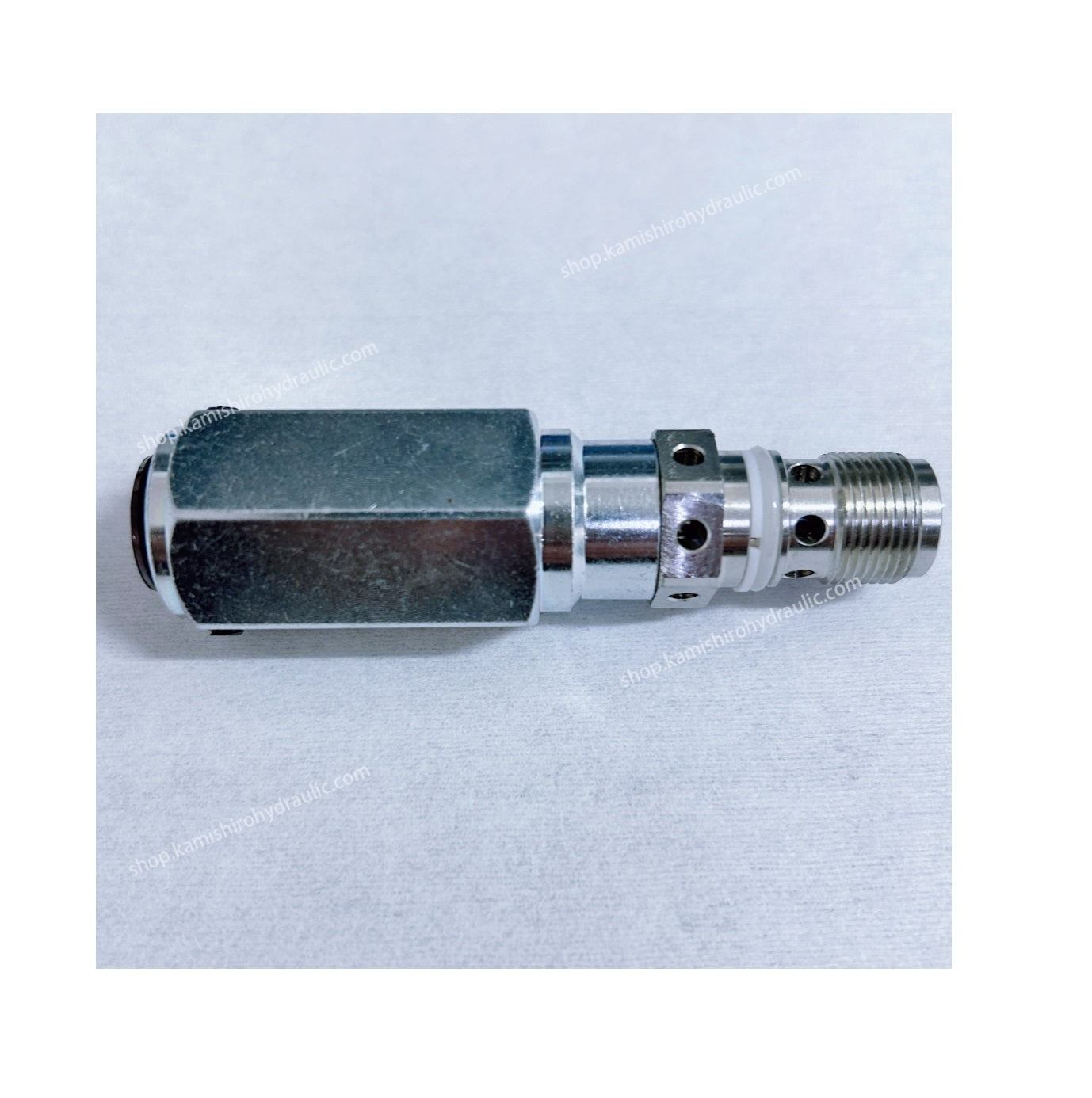

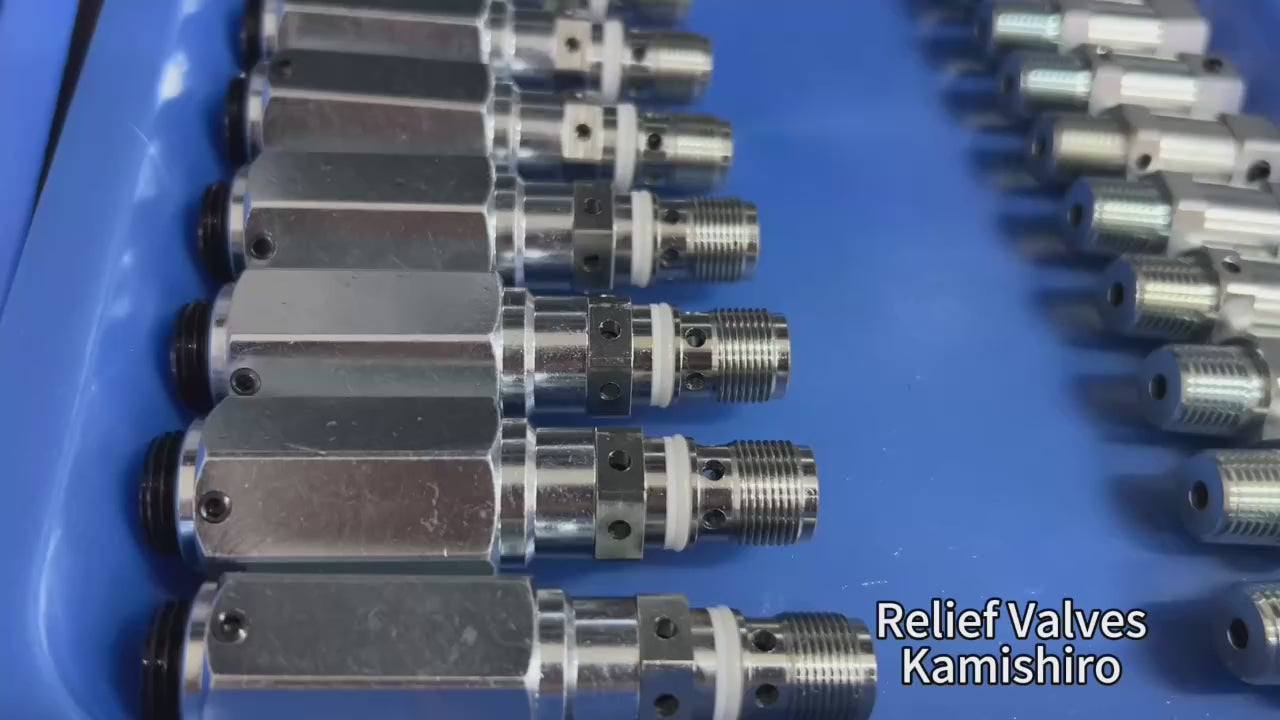

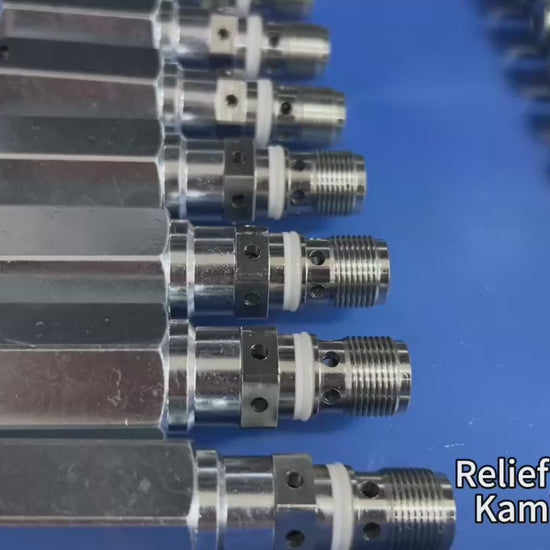

Stainless Steel Pressure Relief Valve for Hydraulic units,
Safety Relief Valve High-Pressure Safety Release Valve from Kamishiro factory.
- Relief valves
- Material: Steel
- Working pressure 75mpa
- Usage for Radial piston R pumps,Hydraulic Motors, wind power generating,ships,Ultra-high pressure hydraulic system.
- ODM, OEM supported
- Factory: Kamishiro
- This price does not include customs duties. The transportation time is 10-15 days. Delivery within 1-3 days after payment.
- If you have other questions, please contact email anna@kamishirotools.com
⛳Pressure-limiting valves and relief valves are types of pressure valves. Pressure-limiting valves safeguard the system against excessive system pressure or limit the operating pressure. Sequence valves generate a constant pressure difference between the
inlet and outlet flow.
Pressure relief valves are widely used in scenarios where system pressure needs to be prevented from exceeding safe limits, including industrial automation (pneumatic systems, injection molding machines), energy sector (oil, natural gas, nuclear energy), building water supply (high-rise water supply, fire protection), heavy machinery (excavator, crane hydraulic circuits), and household appliances (water heaters). Their core function is to safely release excess pressure and protect equipment, personnel, and the environment from overpressure damage or explosion.
Model:PE6| PE7| PE8| PE10| PE12| PE13| PE14| PE15| PE16
Operating pressure max: 700 bar/10000 psi
Geometric displacement Vg max: 1.52 cm³/rev
Flow rate Qmax: 2.2 L/min (1450 rpm), 4.2 L/min (2850 rpm)
Dimension(L*W*H):30*30*25
100% Replacement
Brand Name:HAWE
Description: Pump piston plunger
Design: Valve-controlled pump piston plunger
⛳Features and benefits:
■ available as individual unit
■ universal usage
■ suited to high pressures of up to 700 bar
■ available as individual unit
■ universal usage
■ suited to high pressures of up to 700 bar
⛳Intended applications:
■ Machine tools
■ Devices for workpiece clamping
■ Hydraulic tools

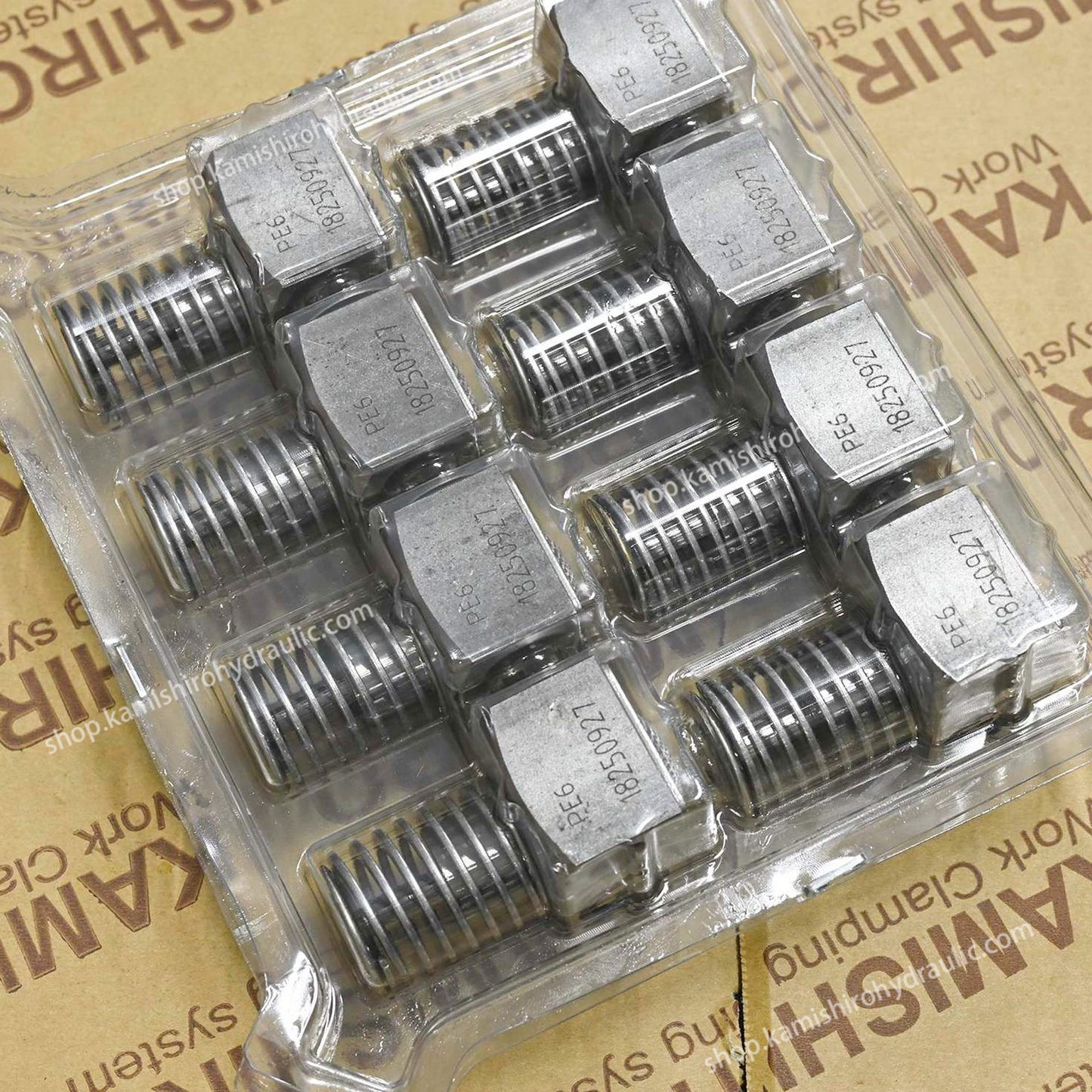

Pump elements type MPE and PE for radial piston pumps
The pump elements type MPE and PE deliver lubricating hydraulic = uids while
simultaneously generating a counter-pressure opposing the load resistance of a
connected consumer.
The pump elements type MPE and PE are the cornerstone of all HAWE radial
piston pumps.
High-pressure pumps for various requirements can be constructed using pump
elements and suitable drive components.
| Type | Piston | Geometric displacement Vg (cm3/rev) | Flow rate Q (lpm) | Piston force in stroke direction per 1 bar (N) |
Power required per 100 bar (kW) |
pmax (bar) | ||||||
| 1450 rpm | 2850 rpm | 1450 rpm | 2850 rpm | |||||||||
| MPE | 4 | 0.062 | 0.09 | 0.18 | 1.26 | 0.018 k | 0.033 k | 700 | ||||
| 5 | 0.096 | 0.14 | 0.27 | 1.96 | 0.026 k | 0.050 k | 700 | |||||
| 6 | 0.14 | 0.2 | 0.4 | 2.83 | 0.036 k | 0.073 k | 700 | |||||
| 7 | 0.19 | 0.28 | 0.54 | 3.85 | 0.050 k | 0.10 k | 700 | |||||
| 8 | 0.25 | 0.36 | 0.71 | 5.03 | 0.070 k | 0.13 k | 700 | |||||
| 9 | 0.31 | 0.45 | 0.89 | 6.36 | 0.087 k | 0.17 k | 550 | |||||
| PE | 6 | 0.21 | 0.3 | 0.6 | 2.83 | 0.055 k | 0.12 k | 700 | ||||
| 7 | 0.29 | 0.4 | 0.8 | 3.9 | 0.07 k | 0.16 k | 700 | |||||
| 8 | 0.38 | 0.5 | 1.0 | 5.03 | 0.09 k | 0.18 k | 700 | |||||
| 10 | 0.59 | 0.8 | 1.6 | 7.85 | 0.15 k | 0.29 k | 560 | |||||
| 12 | 0.84 | 1.2 | 2.4 | 11.3 | 0.22 k | 0.44 k | 390 | |||||
| 13 | 1.0 | 1.45 | 2.8 | 13.3 | 0.26 k | 0.52 k | 330 | |||||
| 14 | 1.15 | 1.7 | 3.3 | 15.4 | 0.31 k | 0.63 k | 290 | |||||
| 15 | 1.32 | 1.9 | 3.7 | 17.7 | 0.35 k | 0.70 k | 250 | |||||
| 16 | 1.52 | 2.2 | 4.2 | 20.0 | 0.43 k | 0.84 k | 220 | |||||
Description: Pump piston plunger
Design: Valve-controlled pump piston plunger
Installation position: As desired
The suction valve inlet of the pump element must be entirely below the oil level to prevent any air being drawn in. The piston and roller bearings must be fully immersed under the oil level during continuous operation to ensure continuous lubrication.
Material: Steel; hardened, ground functional inner parts
Design: Valve-controlled pump piston plunger
Installation position: As desired
The suction valve inlet of the pump element must be entirely below the oil level to prevent any air being drawn in. The piston and roller bearings must be fully immersed under the oil level during continuous operation to ensure continuous lubrication.
Material: Steel; hardened, ground functional inner parts
HAWE Radial Piston Pump Plunger
Temperatures Ambient: approx. -40 - +80°C, Fluid: -25 - +80°C, Note the viscosity range!
Start temperature: down to -40°C is permissible (observe start viscosities!),
as long as the steady-state temperature is at least 20K higher during subsequent operation.
Biologically degradable pressure fluids: Observe manufacturer's specifications. By consideration of the compatibility with seal material not over +70°C.
Operating pressure : 700 bar
Efficiency : + 0.95
stroke frequency: min. 200 rpm, max. 2850 rpm
Below min. stroke frequency: volumetric efficiency will drop swiftly.
Above max. stroke frequency: suction problems may occur (with small cylinder diameters)
Weight:
MPE 4 - 9: 90 g
PE 6 - 16: 300 g
Start temperature: down to -40°C is permissible (observe start viscosities!),
as long as the steady-state temperature is at least 20K higher during subsequent operation.
Biologically degradable pressure fluids: Observe manufacturer's specifications. By consideration of the compatibility with seal material not over +70°C.
Operating pressure : 700 bar
Efficiency : + 0.95
stroke frequency: min. 200 rpm, max. 2850 rpm
Below min. stroke frequency: volumetric efficiency will drop swiftly.
Above max. stroke frequency: suction problems may occur (with small cylinder diameters)
Weight:
MPE 4 - 9: 90 g
PE 6 - 16: 300 g
| Type | B | H | T | Ød | e | f | g ±0.1 | i | l | m | n | O-ring |
| MPE 4 ... 9 | 32 | 19.7 ±0.04 | 16 | 3 | 2.5 ±0.05 | 18.5 | 24 | 11 | 20 | 8 | M6-8.8 (9 Nm) |
8x2 |
| PE 6 ... 16 | 50 | 31.7 ±0.02 | 22.9 | 6 | 3.8 ±0.05 | 26 | 35 | 18.1 | 30.2 | 12.5 | M10-8.8 (48 Nm) |
12.37x2.62 |
⛳Three core technical advantages of our element:
✔ Military-grade material technology: By nitrided alloy steel and surface hardening treatment process, the hardness reaches over HRC60, which is 3 times more wear-resistant than conventional parts;
✔ Modular intelligent design: replaceable plunger pair structure, when the pump body performance declines, no need for replacing the whole machine. Element replacement for restoring the performance, saving up to 70% of maintenance costs.
✔ Adaptive sealing system: Equipped with double O-ring seal & stepped oil outlet valve, it maintains dynamic sealing integrity in the operating range of -40℃ to 120℃.
⛳Perfectly compatible with the full range of Hawe hydraulic pump systems.
These Element are perfectly compatible with the full range of Hawe hydraulic pump systems, from compact R series radial pumps to high-performance SAP axial pumps, providing a powerful power core for global industrial equipment. Each set of products has passed 10,000 pressure cycle tests, and the average trouble-free working time exceeds 20,000 hours.
⛳Main model of Kamishiro HAWE Piston Pump Element:（PE Series）
Ⅰ: With Filter Screen: PE6, PE7, PE8, PE9, PE10, PE11, PE12, PE13, PE14, PE15, PE16
Ⅱ: Without Filter Screen: PE6 HC, PE7 HC, PE8 HC, PE9 HC, PE10 HC, PE11 HC, PE12 HC, PE13 HC, PE14 HC, PE15 HC, PE16 HC
Ⅲ: With Straw: PE6 HKL, PE7 HKL, PE8 HKL, PE9 HKL, PE10 HKL,PE11 HKL, PE12 HKL,PE13 HKL,PE14 HKL,PE15 HKL,PE16 HKL
⛳Application Cases:
- In the hydraulic system of the continuous casting machine of Baowul Group Steel Plant in China, the wear of the KAMISHIRO PE13 Element was only 0.02mm after 18 months of continuous operation, which is far below the replacement threshold of 0.1mm in the
industry standard.
- The main pump of SANY Group SY215 excavator adopts R5.8.5.8.5.8.5.8 PE Element, and the failure interval is extended to 8000 hours.
⛳Products with inventory: Shipping Time in 72 hours
Kamishiro HAWE ELEMENT has strong production and inventory capabilities, and standard products can be delivered within 72 hours.
Quality Assurance and Certification
✅Each set of Hawe pump element carries the precision manufacturing tradition of Kamishiro Company.
✅Raw material traceability: American 1144 special steel + German Freudenberg seals.
✅Production process: CNC five-axis machining center + ion nitriding treatment + 100% online pressure testing.
✅ Quality certification: ISO 9001:2015
✅ Life commitment: 5 years or 20,000 hours of service life under normal working conditions.
We provide exclusive protection for customers:
✅ 15-day unconditional return and exchange (not installed and used)
✅ 12-month quality assurance period
- In the hydraulic system of the continuous casting machine of Baowul Group Steel Plant in China, the wear of the KAMISHIRO PE13 Element was only 0.02mm after 18 months of continuous operation, which is far below the replacement threshold of 0.1mm in the
industry standard.
- The main pump of SANY Group SY215 excavator adopts R5.8.5.8.5.8.5.8 PE Element, and the failure interval is extended to 8000 hours.
⛳Products with inventory: Shipping Time in 72 hours
Kamishiro HAWE ELEMENT has strong production and inventory capabilities, and standard products can be delivered within 72 hours.
Quality Assurance and Certification
✅Each set of Hawe pump element carries the precision manufacturing tradition of Kamishiro Company.
✅Raw material traceability: American 1144 special steel + German Freudenberg seals.
✅Production process: CNC five-axis machining center + ion nitriding treatment + 100% online pressure testing.
✅ Quality certification: ISO 9001:2015
✅ Life commitment: 5 years or 20,000 hours of service life under normal working conditions.
We provide exclusive protection for customers:
✅ 15-day unconditional return and exchange (not installed and used)
✅ 12-month quality assurance period
HAWE PE series piston pumps/pump components are mainly used in fields requiring high pressure, high precision, compactness and reliable hydraulic control, such as machine tools, injection molding machines, die casting machines, construction machinery (such as excavator and loader hydraulic systems), power industry (such as wind turbines and hydraulic stations), and power units and control systems of special equipment, providing high-pressure fluid supply below 700 bar and precise flow control.
