700bar High Pressure Hydraulic Pump for big Torque Wrench Kamishiro from Kamishiro Factory
700bar High Pressure Hydraulic Pump for big Torque Wrench Kamishiro from Kamishiro Factory
Couldn't load pickup availability
High Pressure Hydraulic Pump for Hydraulic Torque Wrench.
- Piston: 4 MPE plunger valves, 4 MPB plunger valves.
- Structure: Single Pump, Motor Pump, Pump Station
- Working pressure 700bar/10000 psi
- Shaft dia. 14mm, 24mm.
- Power of motor: 1.1kw (The motor needs to be matched with a starting capacitor and a running capacitor)
- Vmax tank 7.6L
- Hydraulic Wrench pump with hawe Radial piston pumps
- Usage for Engineering machinery, ships, hydraulic tools, oil fields, aircraft, water conservancy, wind power generating, Ultra-high pressure hydraulic system etc.
- ODM, OEM supported
- This price does not include customs duties. The transportation time is about 15-20 days. Delivery within 15 days after payment.
- If you have other questions, please contact email anna@kamishirotools.com
Hydraulic Wrench pump 700bar High Pressure Hydraulic Pump for Torque Wrench Kamishiro Factory

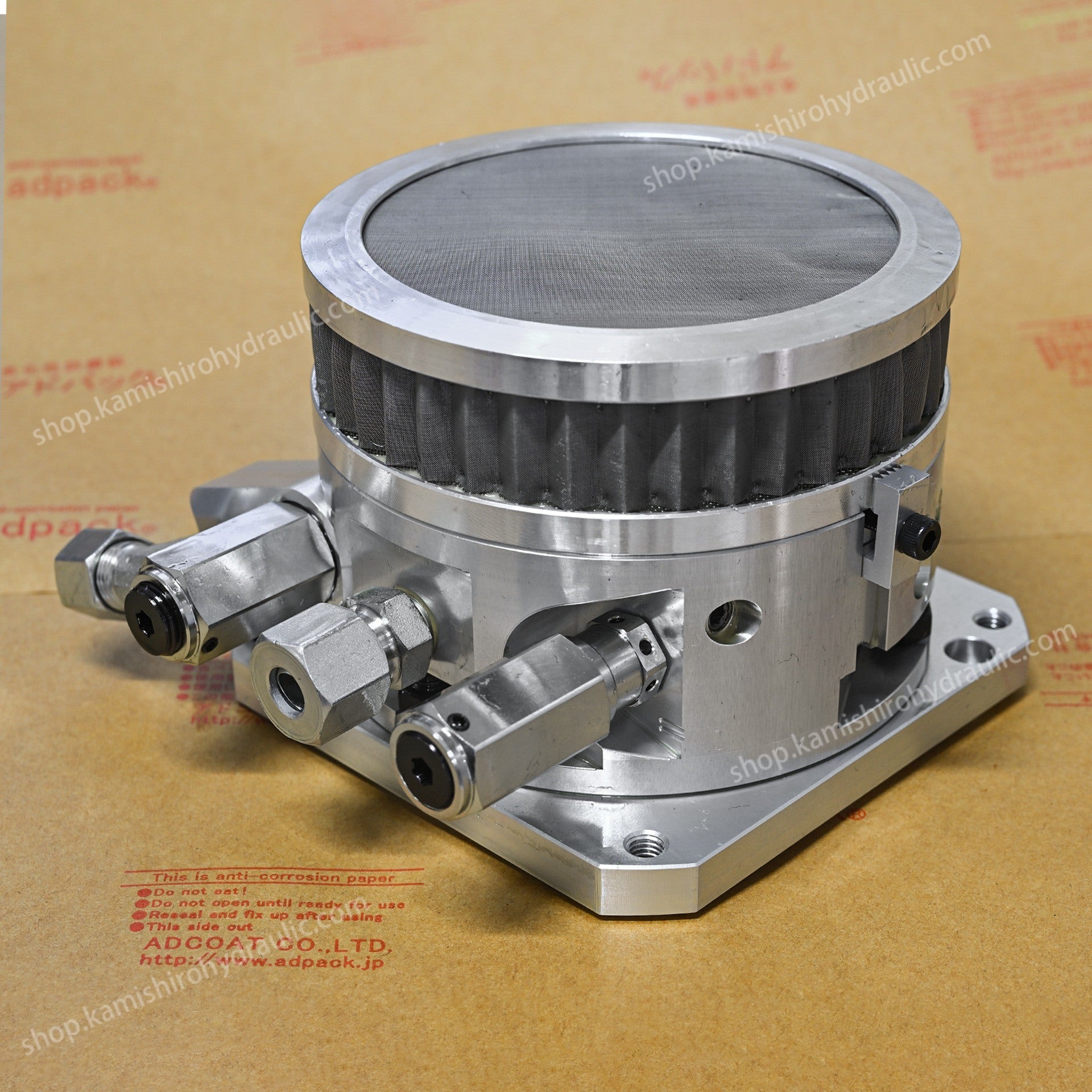

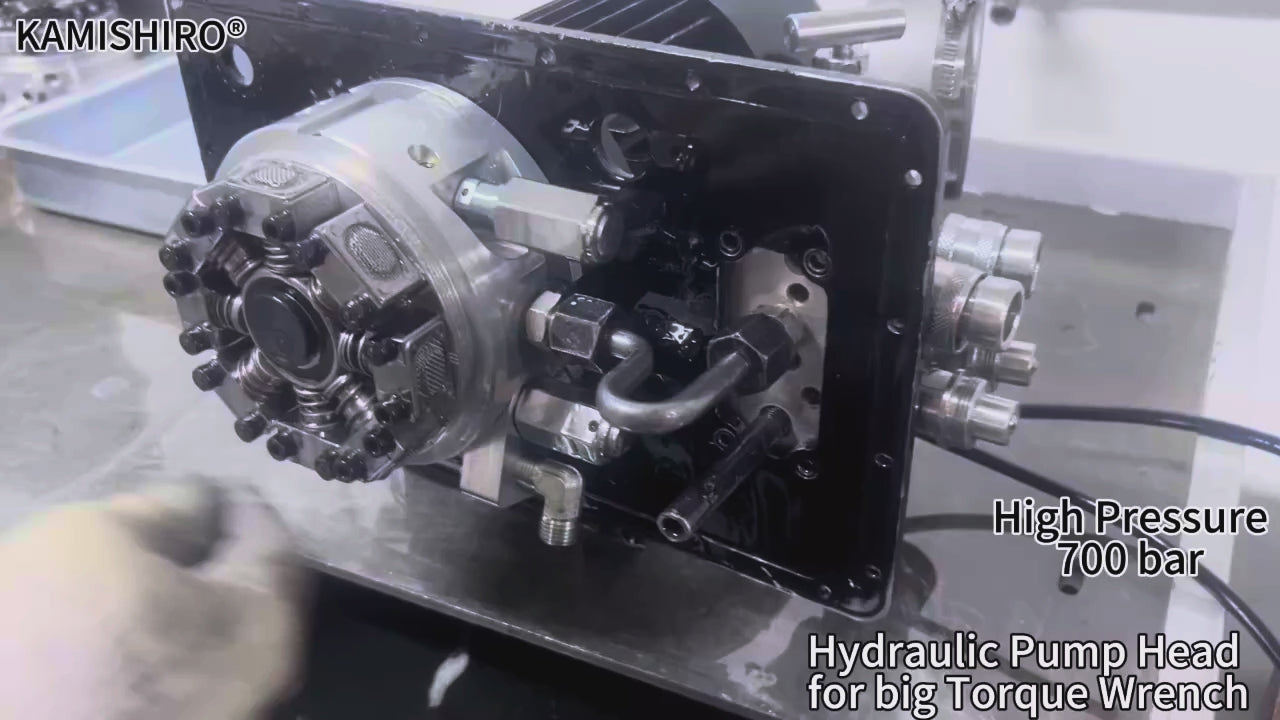

Radial Piston Pump Assembly For Hydraulic Torque Wrench(RB) is a three-stage pump group, it's usually consists of 4 MPE plunger valves and 4 MPB plunger valves.
These plunger valves independent of each. It is equipped with high&low load relief valves and filter hood. It is connected to a motor through a flange, driven by the motor.It supports a large flow output.
Its installation mode is oil-immersed, which is often used to drive a hydraulic torque wrench.
Hydraulic wrench pumps are mainly used in industries such as energy, transportation, power, machinery, metallurgy, chemical, and mining for bolt installation and removal. They are particularly suitable for: situations where confined spaces prevent the use of extended arms or hammers; bolts that are severely corroded and difficult to remove manually; environments lacking strength and safety guarantees for high-altitude operations; and new installation and maintenance work requiring precise control of high torque to ensure equipment performance and safety.
| Working Pressure (Mpa) | Flow Volume (L/min) | ||||
|
High Pressure |
Medium Pressure |
Low Pressure |
High Pressure | Medium Pressure | Low Pressure |
| 70 | 32 | 6 | 0.8 | 1.6 | 8 |
| 70 | 32 | 6 | 0.8 | 1.6 | 8 |
⛳Specific Application：
Industrial Manufacturing and Maintenance: Used for tightening or loosening large bolts during construction, maintenance, and emergency repairs in industries such as power, petrochemicals, shipbuilding, wind power, hydropower, thermal power, machinery manufacturing, metallurgy, and rubber pipes.
Narrow or Confined Spaces: When bolts are located in confined spaces where extended arms or hammering with ordinary tools are not possible, hydraulic wrenches provide precise torque.
Corrosive Environments: Hydraulic wrenches provide powerful force when bolts are difficult to remove due to corrosion on damp or severely corroded equipment.
Working at Heights: When installing or removing bolts on equipment or pipelines at heights, hydraulic wrenches help workers complete the work safely and efficiently, applying sufficient force even when wearing safety harnesses.
High Torque Requirements: In equipment installation and maintenance requiring precise torque values for bolts, hydraulic wrenches can easily achieve torque values that are impossible with manual tools, ensuring connection quality.
⛳Three core technical advantages of our element:
✔ Military-grade material technology: By nitrided alloy steel and surface hardening treatment process, the hardness reaches over HRC60, which is 3 times more wear-resistant than conventional parts;
✔ Modular intelligent design: replaceable plunger pair structure, when the pump body performance declines, no need for replacing the whole machine. Element replacement for restoring the performance, saving up to 70% of maintenance costs.
⛳Perfectly compatible with the full range of Hawe hydraulic pump systems.
⛳Main model of Kamishiro HAWE Piston Pump Element:（PE Series）
Ⅰ: With Filter Screen: MPE4,MPE5,MPE6,MPE7,MPE8,MPE9,MPE10.
- In the hydraulic system of the continuous casting machine of Baowul Group Steel Plant in China, the wear of the KAMISHIRO PE13 Element was only 0.02mm after 18 months of continuous operation, which is far below the replacement threshold of 0.1mm in the
industry standard.
- The main pump of SANY Group SY215 excavator adopts R5.8.5.8.5.8.5.8 PE Element, and the failure interval is extended to 8000 hours.
⛳Products with inventory: Shipping Time in 72 hours

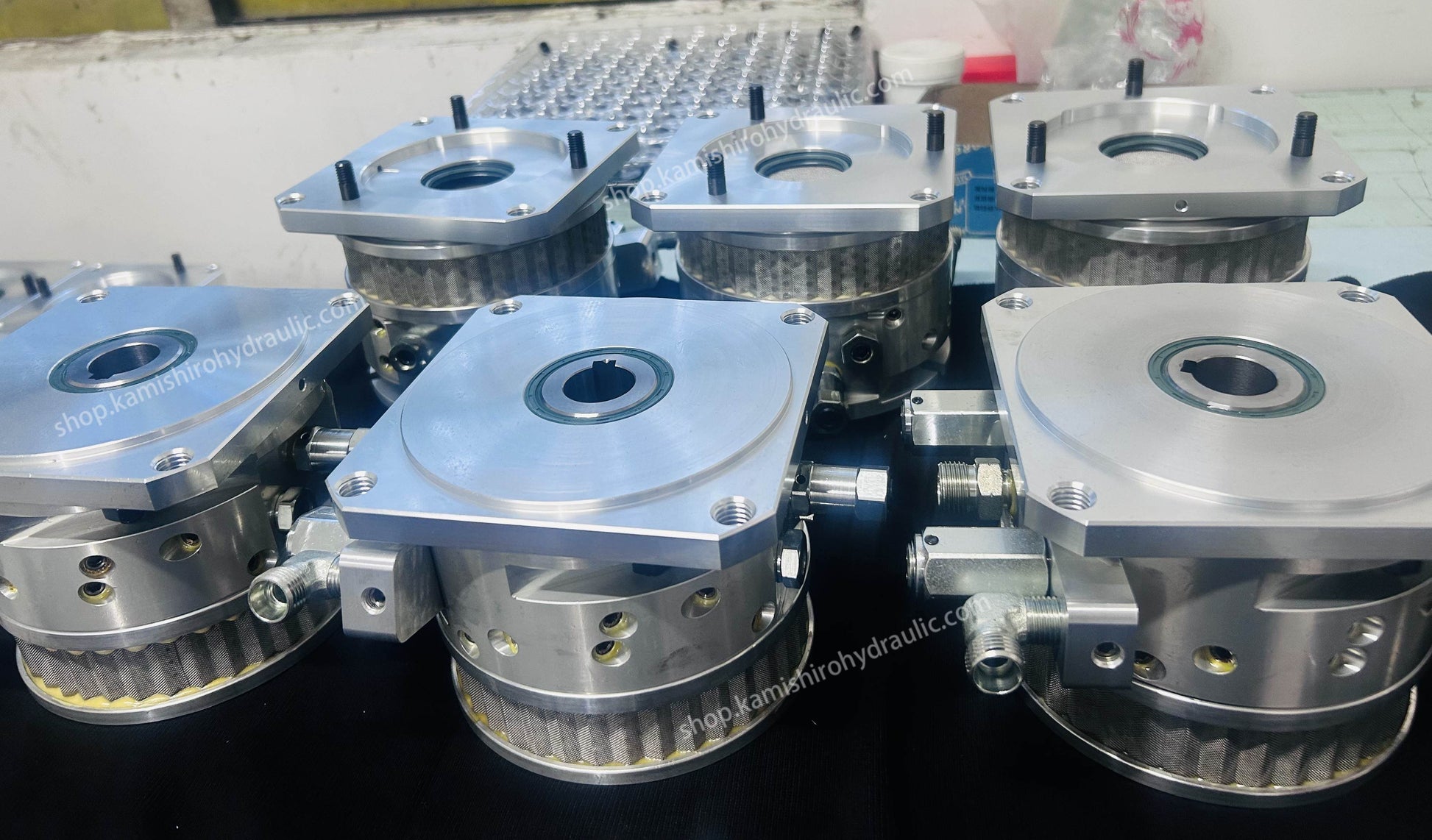

Kamishiro HAWE ELEMENT has strong production and inventory capabilities, and standard products can be delivered within 72 hours.
Quality Assurance and Certification
✅Each set of Hawe pump element carries the precision manufacturing tradition of Kamishiro Company.
✅Raw material traceability: American 1144 special steel + German Freudenberg seals.
✅Production process: CNC five-axis machining center + ion nitriding treatment + 100% online pressure testing.
✅ Quality certification: ISO 9001:2015
✅ Life commitment: 5 years or 20,000 hours of service life under normal working conditions.
We provide exclusive protection for customers:
✅ 15-day unconditional return and exchange (not installed and used)
✅ 12-month quality assurance period
