HAWE Radial Piston Pump R1,2-1,2-1,2-1,2-1,2-1,2-1,2-1,2-1,2-1,2 Construction Machinery industries Hydraulic Pumps Kamishiro factory

HAWE Radial Piston Pump R1,2-1,2-1,2-1,2-1,2-1,2-1,2-1,2-1,2-1,2 Construction Machinery industries Hydraulic Pumps Kamishiro factory

$1,544.00
$1,988.00 $1,544.00
Sale Sold out

Hydraulic HAWE Radial piston pump R pumps

  • PistonФ PE6, PE7, PE8, PE9, PE10, PE11, PE12, PE13, PE14, PE15, PE16
  • Structure: Single Pump, Pump Station.
  • Working pressure: 350bar.
  • Usage for Engineering machinery, ships, hydraulic tools, oil fields, aircraft, water conservancy, wind power generating, Ultra-high pressure hydraulic system etc.
  • ODM, OEM supported.
  • This price does not include customs duties. The transportation time is about 15-20 days.   Delivery within 15 days after payment.
  • If you have other questions, please contact email anna@kamishirotools.com



⛳R-type and RG-type radial piston pumps are widely used, either as motor pumps outside the oil tank or mounted on the oil tank of a hydraulic pump station.

These pumps are typically used to supply hydraulic oil to hydraulic actuators in hydraulic equipment.

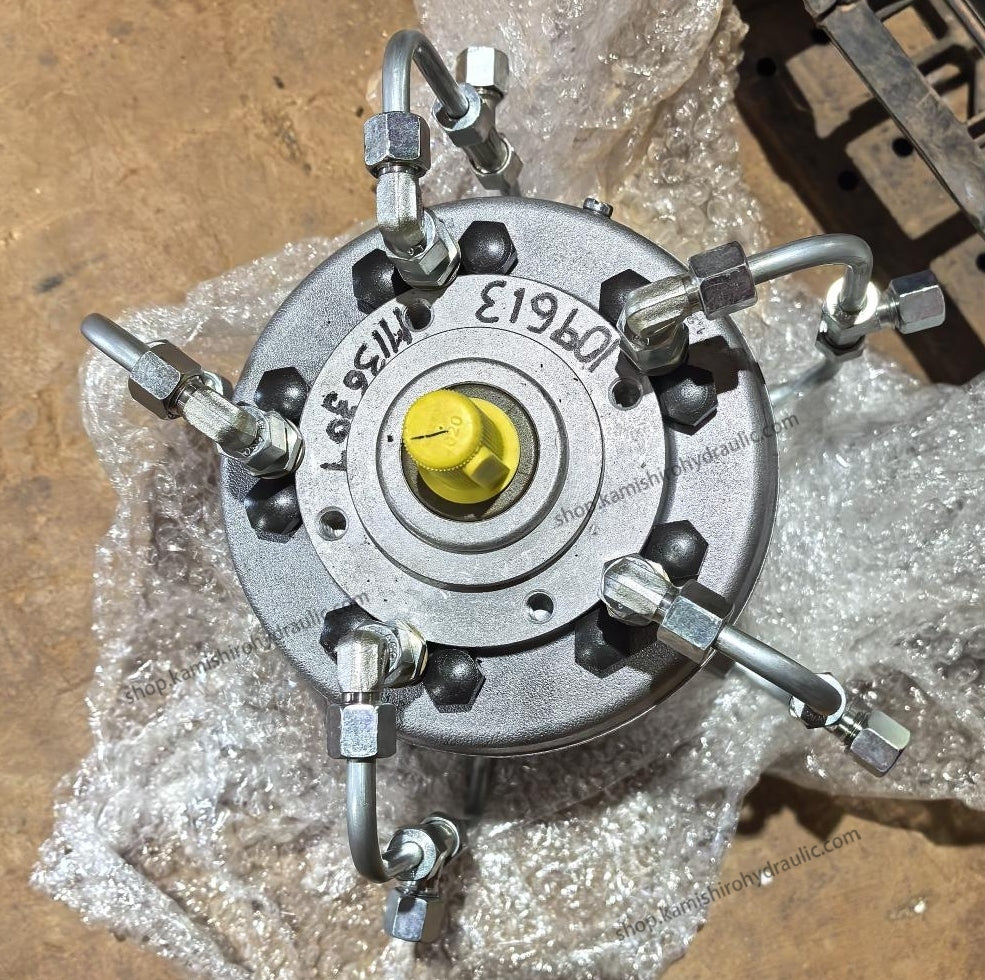

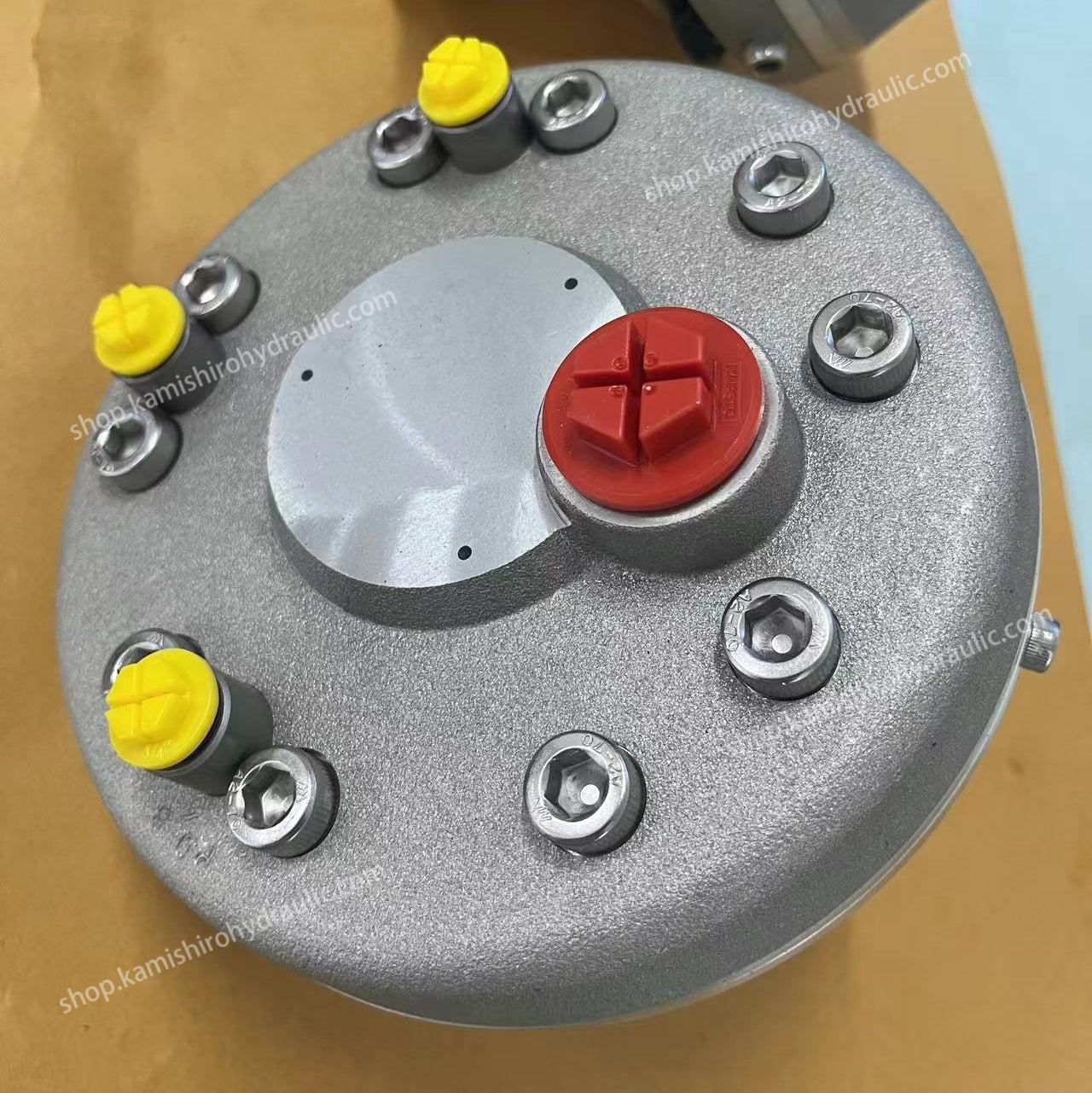

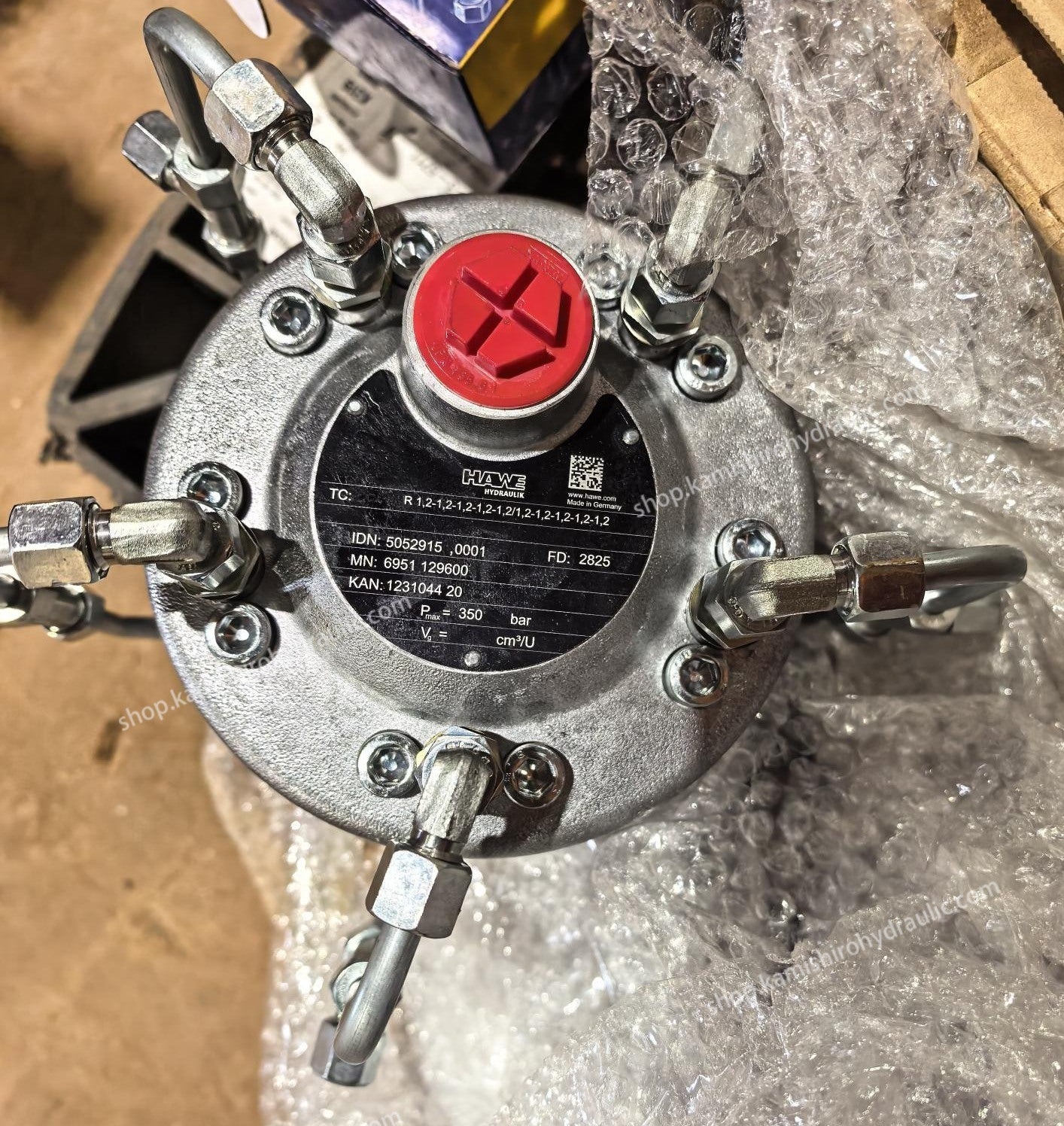

⛳R1,2-1,2-1,2-1,2-1,2-1,2-1,2-1,2-1,2-1,2 HAWE radial piston pump has a cast iron structure, which is resistant to high pressure, compact in structure, small in size, leak-free and has a long service life. It is widely used in engineering machinery, machine tools, ships, hydraulic tools and other industries.

Coding
Delivery flow
(l/min) at
1450 min-1		 Displacement
volume
Vg (cm3/rev)		 Operating
pressure
pmax (bar)		 Assembly Pump elements Power range of
motor
(kW)
Number Piston
⌀ (mm)
0.18 0.13 700 7631 2 4 0.25 - 0.55
0.27 0.19 700 7631 3 4 0.25 - 0.75
0.28 0.2 550 7631 2 5 0.25 - 0.55
0.3 0.21 700 6010 1 6 0.25 - 2.2
0.41 0.29 700 6010 1 7 0.25 - 2.2
0.42 0.29 550 7631 3 5 0.25 - 0.75
0.43 0.28 450 7631 2 6 0.25 - 0.55
0.46 0.31 700 7631 5 4 0.25 - 1.1
0.5 0.38 700 6010 1 8 0.25 - 2.2
0.56 0.38 350 7631 2 7 0.25 - 0.55
0.6 0.43 700 6010 2 6 0.25 - 2.2
0.64 0.42 450 7631 3 6 0.25 - 0.75
0.7 0.49 550 7631 5 5 0.25 - 1.1
0.73 0.5 300 7631 2 8 0.25 - 0.55
0.8 0.6 500 6010 1 10 0.25 - 2.2
0.81 0.58 350 7631 3 7 0.25 - 0.75
1.08 0.71 450 7631 5 6 0.25 - 1.1
1.1 0.75 300 7631 3 8 0.25 - 0.75
1.2 0.86 350 6010 1 12 0.25 - 2.2
1.25 0.88 700 6010 3 7 0.25 - 3
1.35 0.95 250 7631 3 9 0.25 - 0.75
1.39 0.96 350 7631 5 7 0.25 - 1.1
1.4 1.07 700 6011 5 6 0.25 - 4
1.45 1.01 300 6010 1 13 0.25 - 2.2
1.5 1.15 700 6010 3 8 0.25 - 3
1.6 1.19 500 6010 2 10 0.25 - 2.2
1.7 1.17 250 6010 1 14 0.25 - 2.2
1.77 1.26 300 7631 5 8 0.25 - 1.1
1.9 1.34 200 6010 1 15 0.25 - 2.2
2.08 1.46 700 6011 5 7 0.25 - 4
2.1 1.5 700 6011 7 6 0.55 - 5.5
2.2 1.53 200 6010 1 16 0.25 - 2.2
2.27 1.59 250 7631 5 9 0.25 - 1.1
2.4 1.72 350 6010 2 12 0.25 - 2.2
2.5 1.79 500 6010 3 10 0.25 - 3
2.6 1.91 600 6011 5 8 0.25 - 4
2.7 2.15 700 6012 10 6 2.2 - 7.5 (9)
2.8 2.02 300 6010 2 13 0.25 - 2.2
2.9 2.05 600 6011 7 7 0.55 - 5.5
3.3 2.34 250 6010 2 14 0.25 - 2.2
3.6 2.58 350 6010 3 12 0.25 - 3
3.7 2.67 550 6011 7 8 0.55 - 5.5
3.8 2.69 200 6010 2 15 0.25 - 2.2
4 3.01 700 6012 14 6 2.2 - 11
4.15 2.92 700 6012 10 7 2.2 - 7.5 (9)
4.2 2.98 450 6011 5 10 0.25 - 4
4.3 3.03 300 6010 3 13 0.25 - 3
4.4 3.06 200 6010 2 16 0.25 - 2.2
5.1 3.51 250 6010 3 14 0.25 - 3
5.3 3.82 600 6012 10 8 2.2 - 7.5 (9)
5.6 4.03 200 6010 3 15 0.25 - 3
5.85 4.09 600 6012 14 7 2.2 - 11
6 4.3 350 6011 5 12 0.25 - 4
6.1 4.3 700 6014 20 6 5.5 - 18.5
6.5 4.58 200 6010 3 16 0.25 - 3
7 5.04 300 6011 5 13 0.25 - 4
7.4 5.35 550 6012 14 8 2.2 - 11
8 6.02 700 6014 28 6 5.5 - 22
8.2 5.97 450 6012 10 10 2.2 - 7.5 (9)
8.3 5.85 250 6011 5 14 0.25 - 4
8.35 5.85 700 6014 20 7 5.5 - 18.5
8.4 6.02 350 6011 7 12 0.55 - 5.5
9.5 6.72 200 6011 5 15 0.25 - 4
9.8 7.06 300 6011 7 13 0.55 - 5.5
10.9 7.64 160 6011 5 16 0.25 - 4
11 7.64 700 6014 20 8 5.5 - 18.5
11.6 8.36 450 6012 14 10 2.2 - 11
11.65 8.19 700 6014 28 7 5.5 - 22



⛳Model: Assembly 6010/6011/6012/6014/6016/7631

Type: R0.41, R0.18, R0.43, R0.92, R0.27, R0.42, R1.35, R0.46, R0.7, R1.08, R2.27, R0.3, R0.8, R1.7, R2.2, R1.0, R1.6, R3.3, R4.4, R0.9, R1.5, R2.5, R5.1, R6.5, R12.7
0perating pressure max: 700 bar/10000 psi
Geometric displacement Vg max: 64.18 cm³/rev
Flow rate Qmax: 12.7 lpm
100% Replacement
Brand Name:HAWE

⛳Features:
high efficiency,
Good function even at low viscosity,
Fine delivery flow rate gradation,
Long service life,
Operation not dependent on direction of rotation,
Compact dimensions,
Fine flow rate gradation.

⛳Intended applications:
Industrial hydraulics,
Testing machinery,
Lubrication systems,
hydraulic tools,
Press construction,
Fixture design,
Testing and laboratory equipment,
Lubrication systems,
Agricultural engineering,
Any high-pressure application is basically possible,
Areas in which a constant flow rate is necessary.
Oilfield equipment, construction machinery, and ship and port hydraulic systems.
Any high-pressure application is basically possible,Areas in which a constant flow rate is necessary.
Construction machinery and heavy equipment: such as snowplows, embankment mowers, diesel forklifts, self-propelled work platforms, and heavy hydraulic equipment such as steel mills, oil fields, water conservancy, aircraft, and die-casting machines.

The hawe radial piston pump type R consists of valve-controlled pump elements arranged in star form around an eccentric. For large flow rates, up to 42 pump elements can be set up in 6 stars stacked one above the other. The pump elements' output volume is merged to feed one or more pressure outlets.

The radial piston pump type R, RG and RZ has a closed pump housing. Therefore, besides use as a motor pump outside an oil tank, installation in the container of a hydraulic power pack is also possible. The radial piston pump is available with several pressure outlets which enable the same or several different volumetric flows.

⛳Three core technical advantages of our element:

✔ Military-grade material technology: By nitrided alloy steel and surface hardening treatment process, the hardness reaches over HRC60, which is 3 times more wear-resistant than conventional parts;

✔ Modular intelligent design: replaceable plunger pair structure, when the pump body performance declines, no need for replacing the whole machine. Element replacement for restoring the performance, saving up to 70% of maintenance costs.

✔ Adaptive sealing system: Equipped with double O-ring seal & stepped oil outlet valve, it maintains dynamic sealing integrity in the operating range of -40℃ to 120℃.

⛳Perfectly compatible with the full range of Hawe hydraulic pump systems.

The Radial Piston Pump plunger pump offers excellent performance and a well-designed design, suitable for a wide range of industrial applications. Its high efficiency, durability, and flexibility enable it to meet the high standards demanded by modern businesses for hydraulic equipment. With the continuous advancement of hydraulic technology, products like this Pump will bring higher productivity and lower operating costs to more businesses.

⛳Main model of Kamishiro HAWE Piston Pump Element:（PE Series）

Ⅰ: With Filter Screen: PE6, PE7, PE8, PE9, PE10, PE11, PE12, PE13, PE14, PE15, PE16

Ⅱ: Without Filter Screen: PE6 HC, PE7 HC, PE8 HC, PE9 HC, PE10 HC, PE11 HC, PE12 HC, PE13 HC, PE14 HC, PE15 HC, PE16 HC

Ⅲ: With Straw: PE6 HKL, PE7 HKL, PE8 HKL, PE9 HKL, PE10 HKL,PE11 HKL, PE12 HKL,PE13 HKL,PE14 HKL,PE15 HKL,PE16 HKL

⛳Application Cases:

- In the hydraulic system of the continuous casting machine of Baowul Group Steel Plant in China, the wear of the KAMISHIRO PE13 Element was only 0.02mm after 18 months of continuous operation, which is far below the replacement threshold of 0.1mm in the
industry standard.

- The main pump of SANY Group SY215 excavator adopts R5.8.5.8.5.8.5.8 PE Element, and the failure interval is extended to 8000 hours.

⛳Products with inventory: Shipping Time in 72 hours

Kamishiro HAWE ELEMENT has strong production and inventory capabilities, and standard products can be delivered within 72 hours.

Quality Assurance and Certification

✅Each set of Hawe pump element carries the precision manufacturing tradition of Kamishiro Company.
✅Raw material traceability: American 1144 special steel + German Freudenberg seals.
✅Production process: CNC five-axis machining center + ion nitriding treatment + 100% online pressure testing.
✅ Quality certification: ISO 9001:2015
✅ Life commitment: 5 years or 20,000 hours of service life under normal working conditions.

We provide exclusive protection for customers:

✅ 15-day unconditional return and exchange (not installed and used)
✅ 12-month quality assurance period
