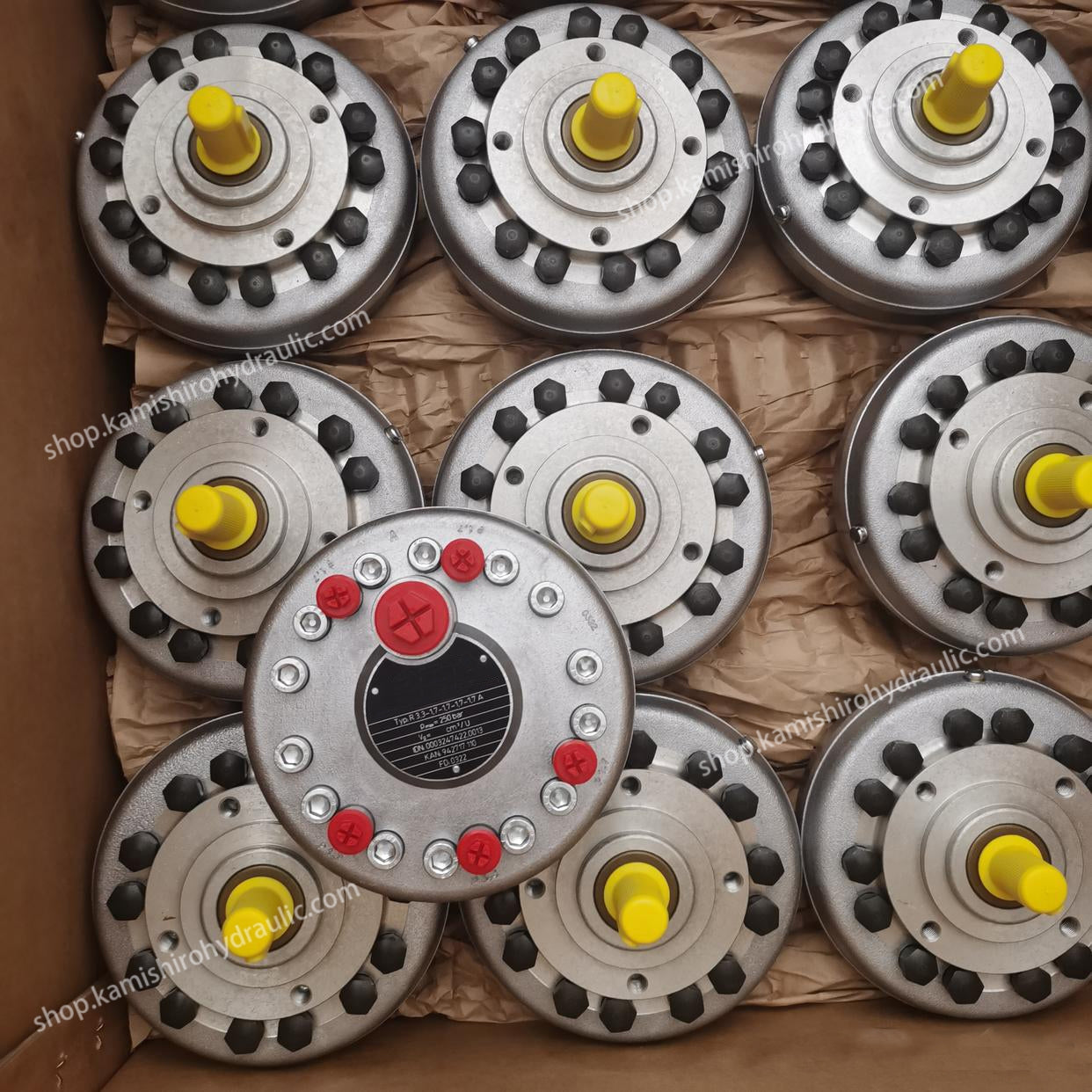

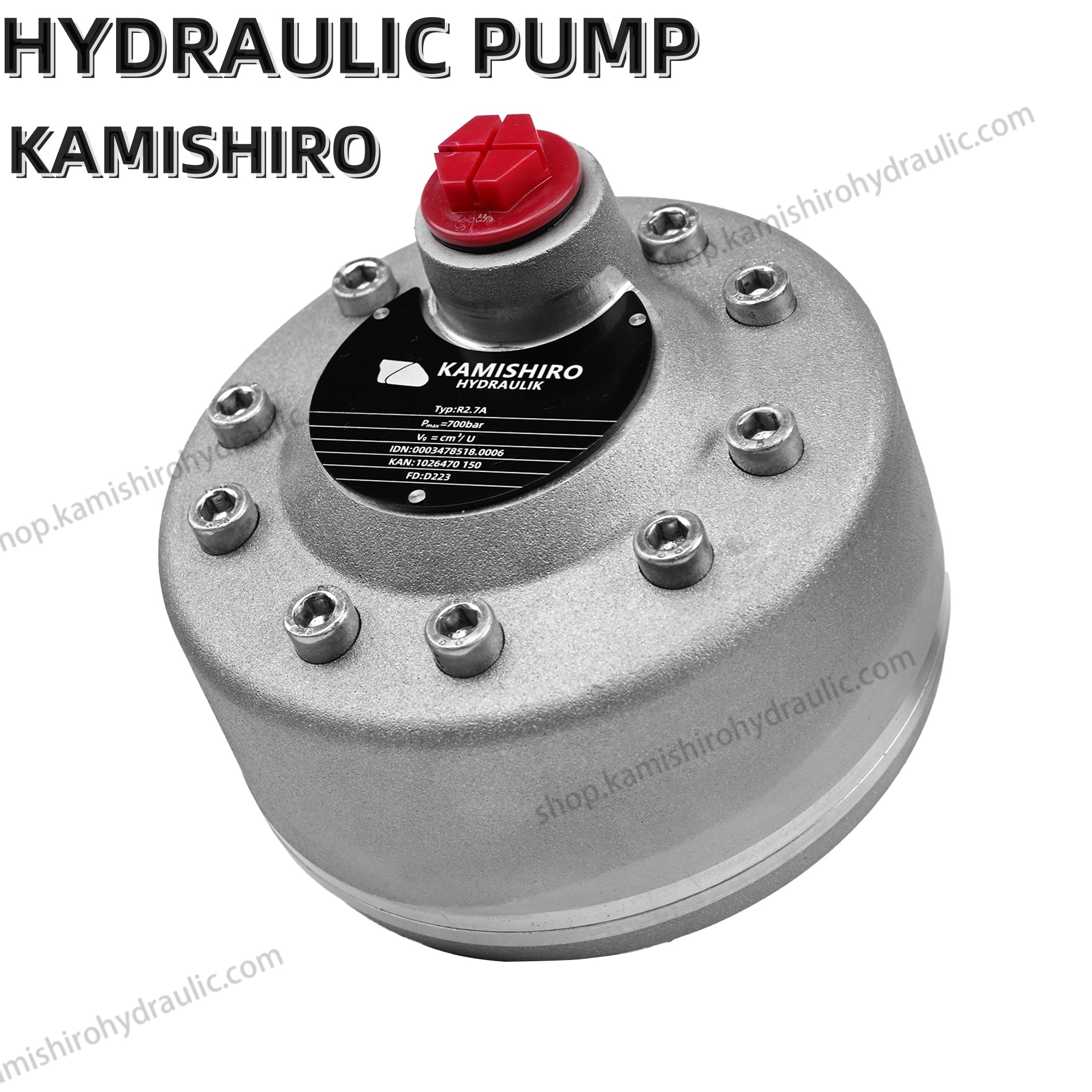

Hawe R RG Pump R 3.3-1.7-1.7-1.7-1.7A Kamishiro Hydraulic Radial Piston Pump with PE MPE Plunger
Hawe R RG Pump R 3.3-1.7-1.7-1.7-1.7A Kamishiro Hydraulic Radial Piston Pump with PE MPE Plunger
Regular price
$865.00
Regular price
$982.00
Sale price
$865.00
Unit price
per
Couldn't load pickup availability
Hydraulic Hawe Radial piston pump R pumps
- PistonФ 6,7,8,9,10,11,12,13,14,15,16 (mm)
- Structure: Single Pump, Motor Pump, Pump Station
- Working pressure 700bar
- hawe Radial piston pumps
- Usage for Engineering machinery, ships, hydraulic tools, oil fields, aircraft, water conservancy, wind power generating, Ultra-high pressure hydraulic system etc.
- ODM, OEM supported
- This price does not include customs duties. The transportation time is about 15-20 days. Delivery within 15 days after payment.
- If you have other questions, please contact the administrator's email anna@kamishirotools.com

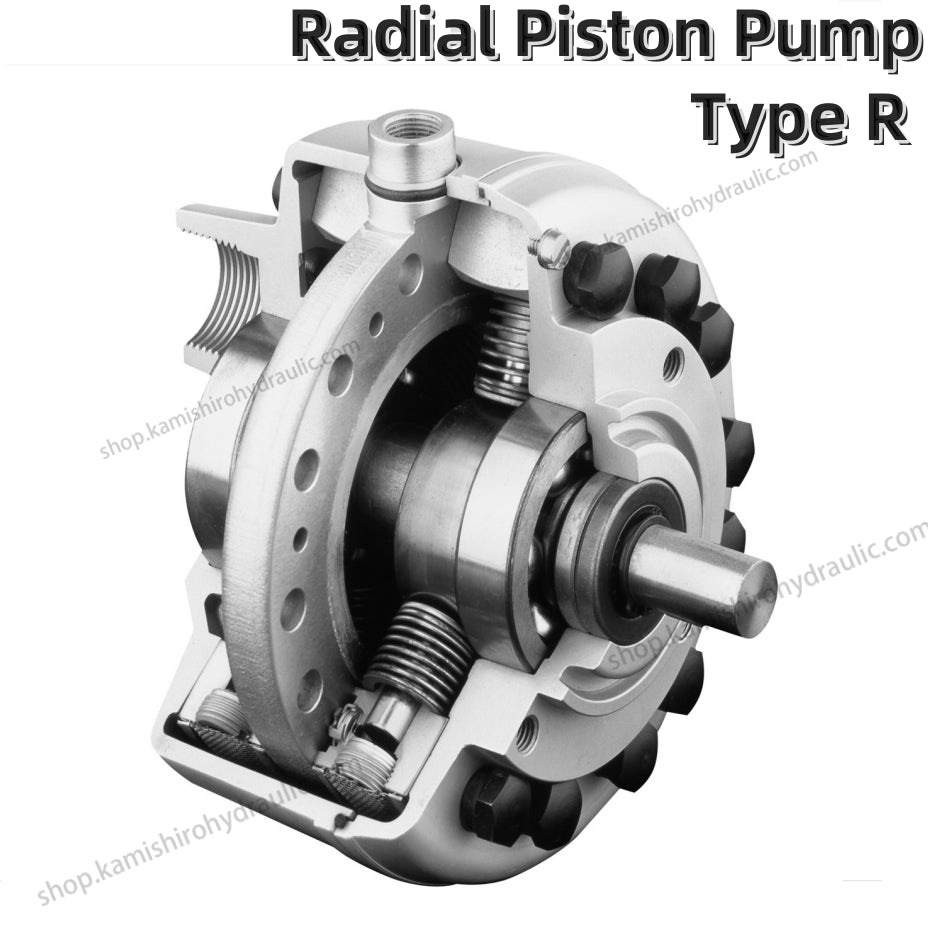

The hawe radial piston pump type R consists of valve-controlled pump elements arranged in star form around an eccentric. For large flow rates, up to 42 pump elements can be set up in 6 stars stacked one above the other. The pump elements' output volume is merged to feed one or more pressure outlets.
The radial piston pump type R, RG and RZ has a closed pump housing. Therefore, besides use as a motor pump outside an oil tank, installation in the container of a hydraulic power pack is also possible. The radial piston pump is available with several pressure outlets which enable the same or several different volumetric flows.
⛳Three core technical advantages of our element:
✔ Military-grade material technology: By nitrided alloy steel and surface hardening treatment process, the hardness reaches over HRC60, which is 3 times more wear-resistant than conventional parts;
✔ Modular intelligent design: replaceable plunger pair structure, when the pump body performance declines, no need for replacing the whole machine. Element replacement for restoring the performance, saving up to 70% of maintenance costs.
✔ Adaptive sealing system: Equipped with double O-ring seal & stepped oil outlet valve, it maintains dynamic sealing integrity in the operating range of -40℃ to 120℃.
⛳Perfectly compatible with the full range of Hawe hydraulic pump systems.
These Element are perfectly compatible with the full range of Hawe hydraulic pump systems, from compact R series radial pumps to high-performance SAP axial pumps, providing a powerful power core for global industrial equipment. Each set of products has passed 10,000 pressure cycle tests, and the average trouble-free working time exceeds 20,000 hours.

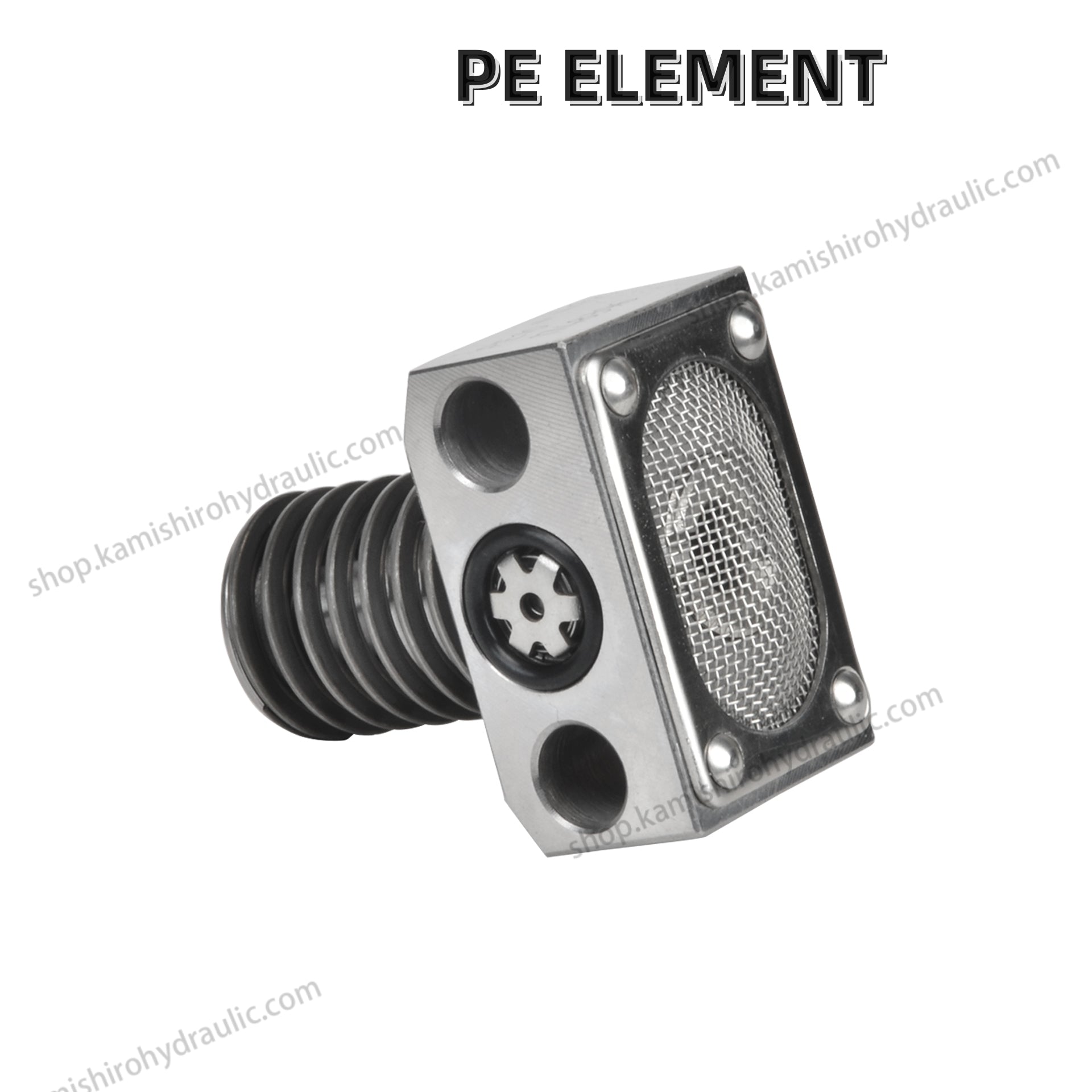

⛳Main model of Kamishiro HAWE Piston Pump Element:（PE Series）
Ⅰ: With Filter Screen: PE6, PE7, PE8, PE9, PE10, PE11, PE12, PE13, PE14, PE15, PE16
Ⅱ: Without Filter Screen: PE6 HC, PE7 HC, PE8 HC, PE9 HC, PE10 HC, PE11 HC, PE12 HC, PE13 HC, PE14 HC, PE15 HC, PE16 HC
Ⅲ: With Straw: PE6 HKL, PE7 HKL, PE8 HKL, PE9 HKL, PE10 HKL,PE11 HKL, PE12 HKL,PE13 HKL,PE14 HKL,PE15 HKL,PE16 HKL
⛳Application Cases:
- In the hydraulic system of the continuous casting machine of Baowul Group Steel Plant in China, the wear of the KAMISHIRO PE13 Element was only 0.02mm after 18 months of continuous operation, which is far below the replacement threshold of 0.1mm in the
industry standard.
- The main pump of SANY Group SY215 excavator adopts R5.8.5.8.5.8.5.8 PE Element, and the failure interval is extended to 8000
hours.
⛳Products with inventory: Shipping Time in 72 hours
Kamishiro HAWE ELEMENT has strong production and inventory capabilities, and standard products can be delivered within 72 hours.
Quality Assurance and Certification
✅Each set of Hawe pump element carries the precision manufacturing tradition of Kamishiro Company.
✅Raw material traceability: American 1144 special steel + German Freudenberg seals.
✅Production process: CNC five-axis machining center + ion nitriding treatment + 100% online pressure testing.
✅ Quality certification: ISO 9001:2015
✅ Life commitment: 5 years or 20,000 hours of service life under normal working conditions.
We provide exclusive protection for customers:
✅ 15-day unconditional return and exchange (not installed and used)
✅ 12-month quality assurance period
