Hawe Hydraulic Wrench pump Kamishiro Hydraulic Radial Piston Pump with hawe PE MPE Plunger
Hawe Hydraulic Wrench pump Kamishiro Hydraulic Radial Piston Pump with hawe PE MPE Plunger
Regular price
$924.00
Regular price
$1,050.00
Sale price
$924.00
Unit price
per
Couldn't load pickup availability
Hydraulic Wrench pump Hawe Radial piston pump
- PistonФ 6,7,8,9,10,11,12,13,14,15,16 (mm)
- Structure: Single Pump, Motor Pump, Pump Station
- Working pressure 700bar/10000 psi
- Vmax tank 7.6L
- Hydraulic Wrench pump with hawe Radial piston pumps
- Usage for Engineering machinery, ships, hydraulic tools, oil fields, aircraft, water conservancy, wind power generating, Ultra-high pressure hydraulic system etc.
- ODM, OEM supported
- This price does not include customs duties. The transportation time is about 15-20 days. Delivery within 15 days after payment.
- If you have other questions, please contact the administrator's email anna@kamishirotools.com
Hydraulic Wrench pump with Hawe Radial piston pump PE MPE Plungers

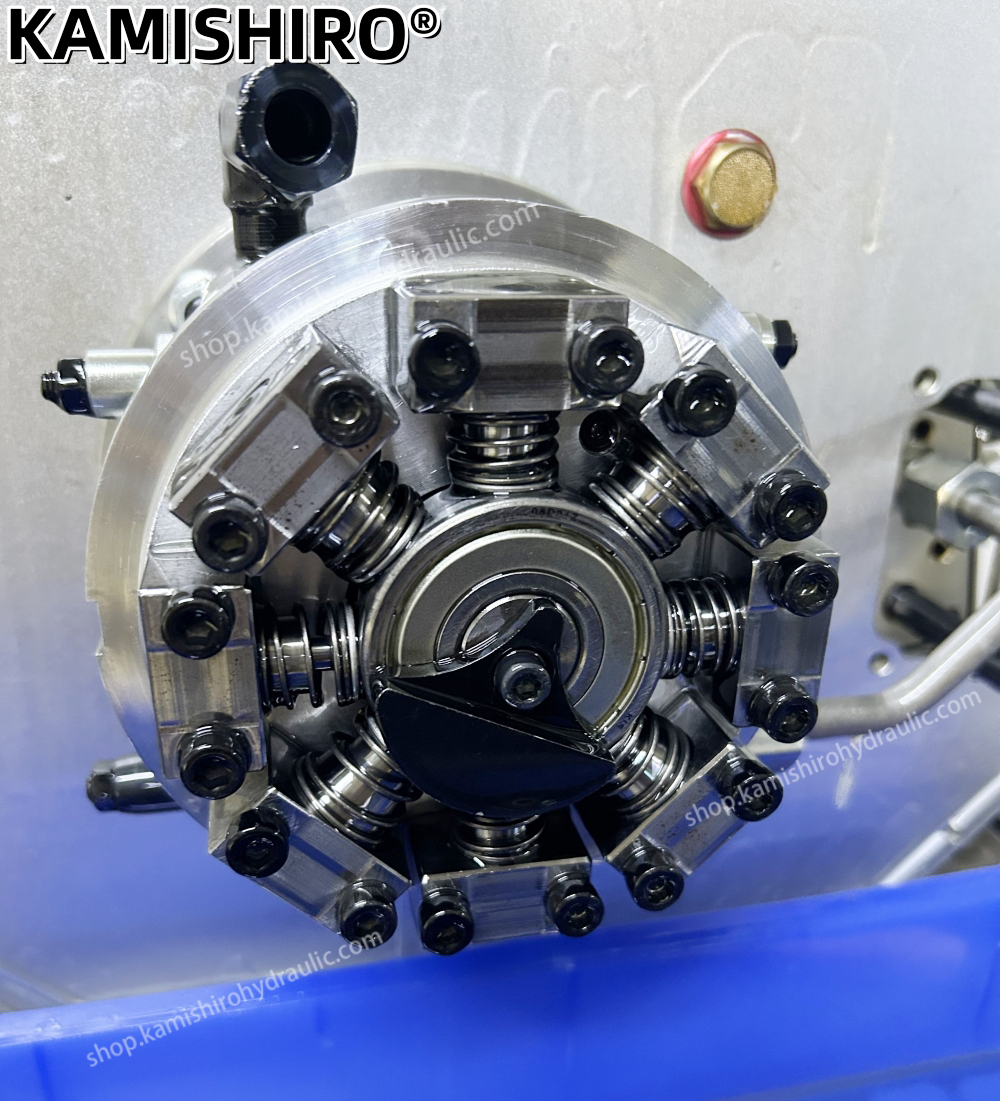

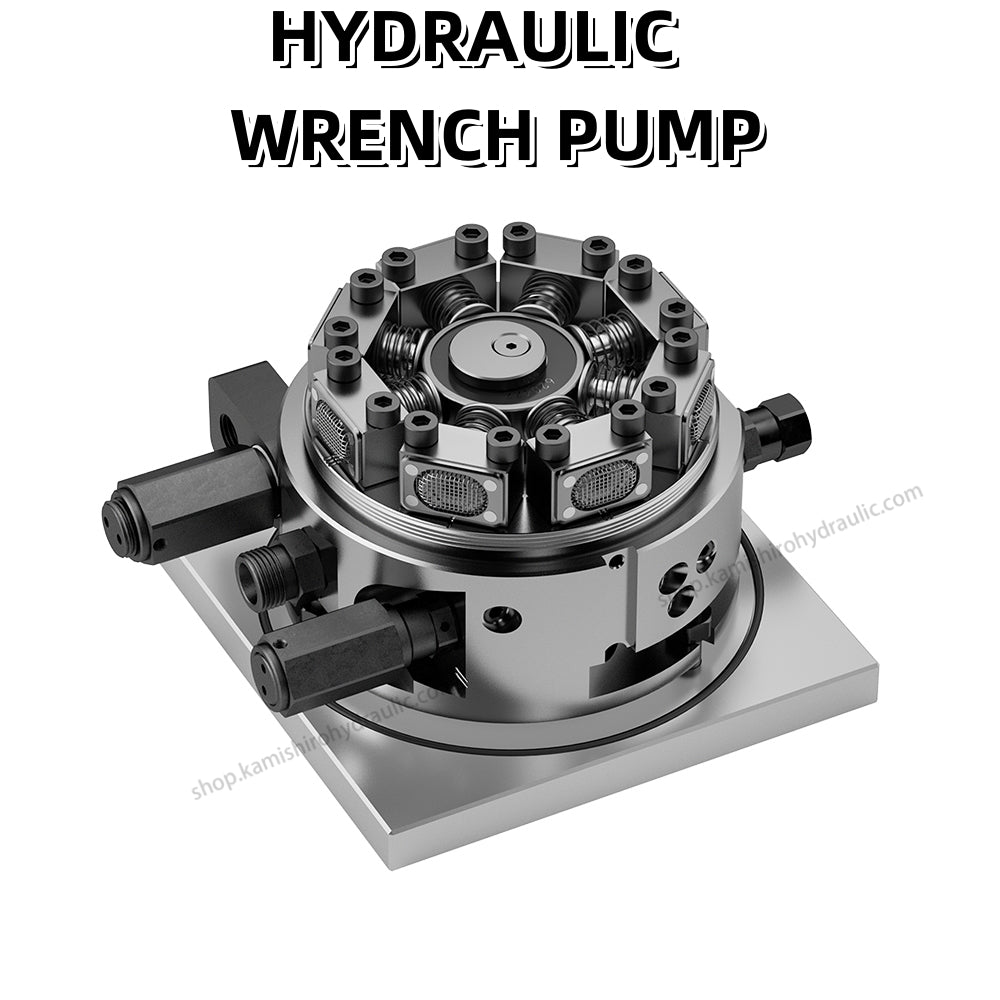

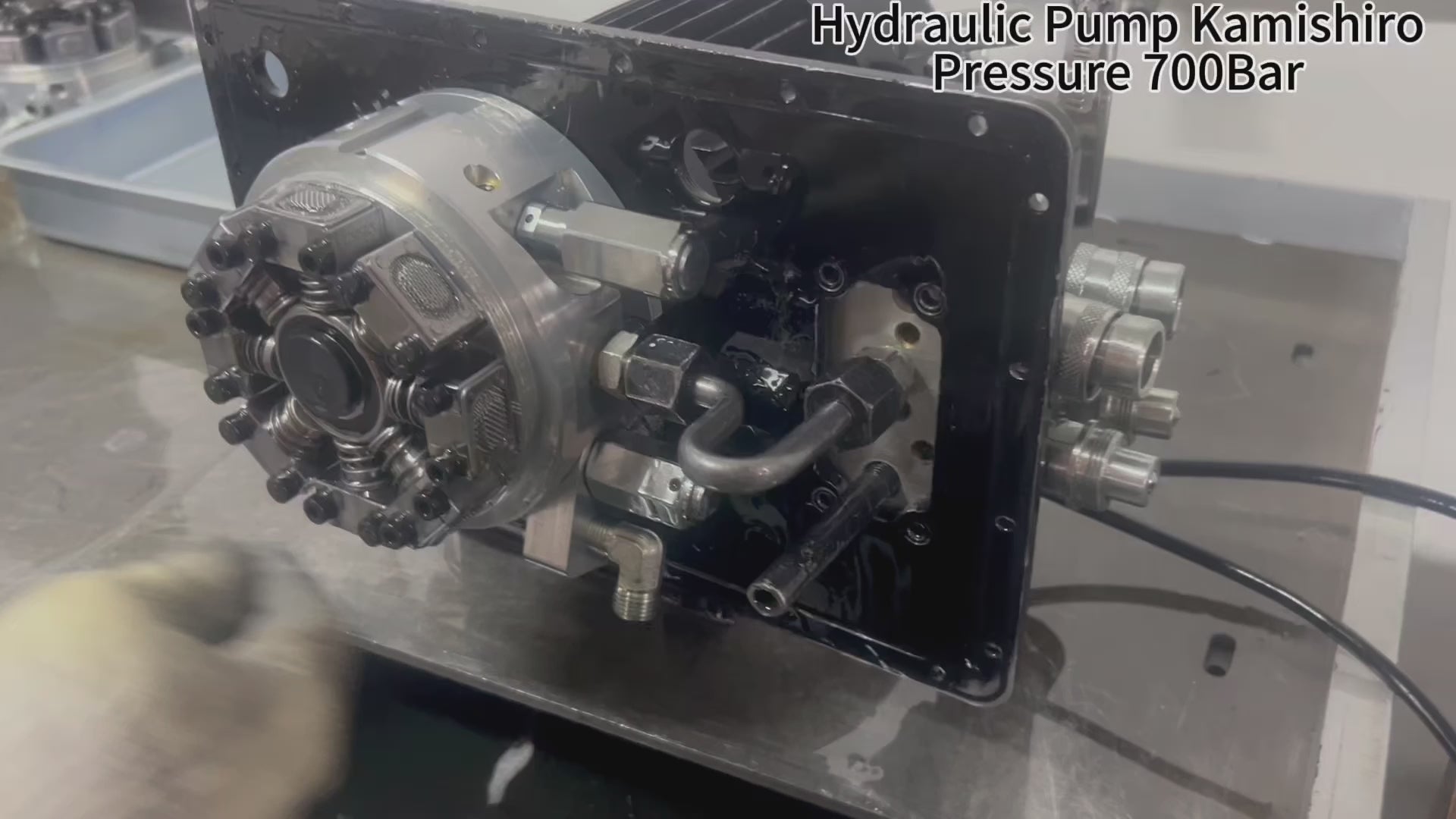

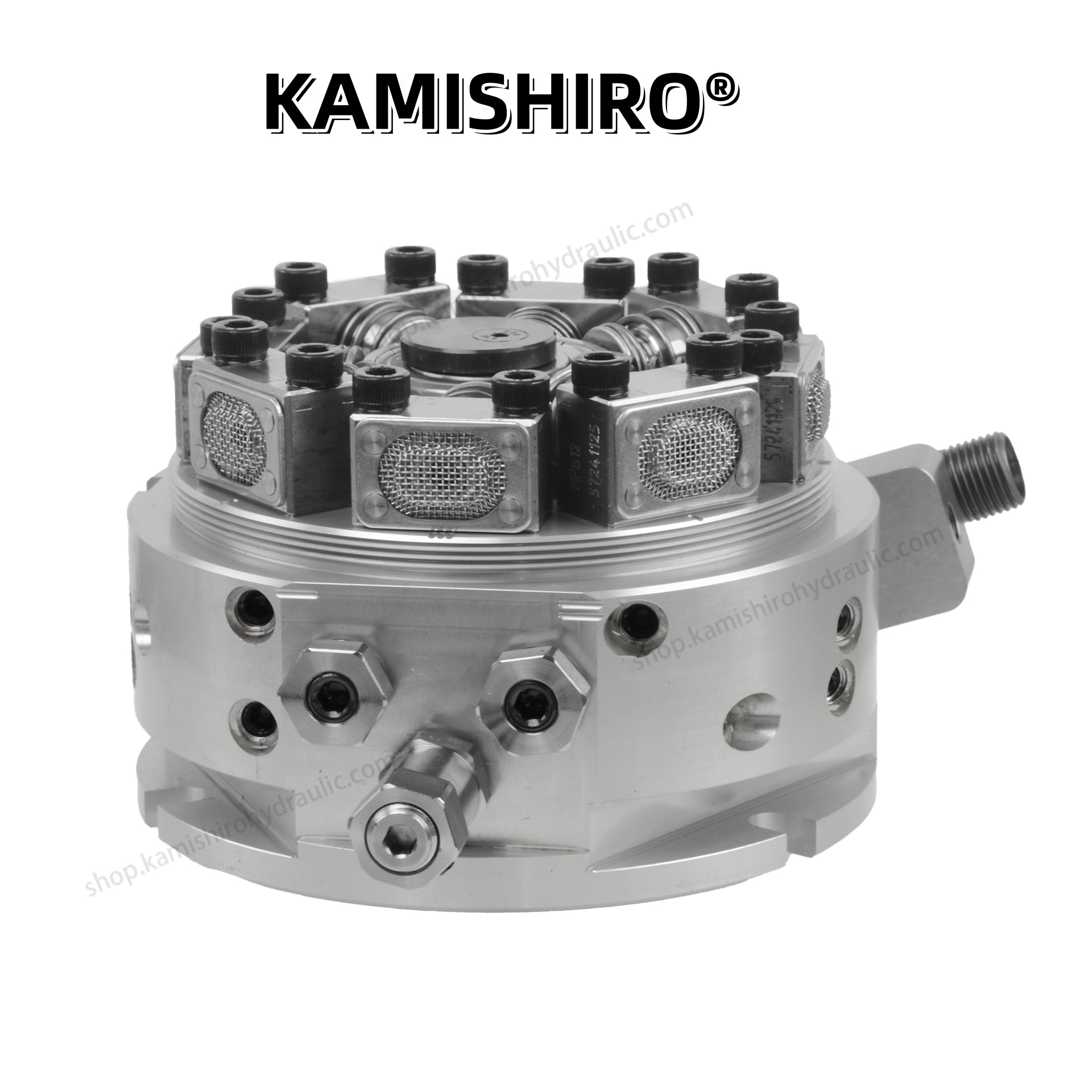

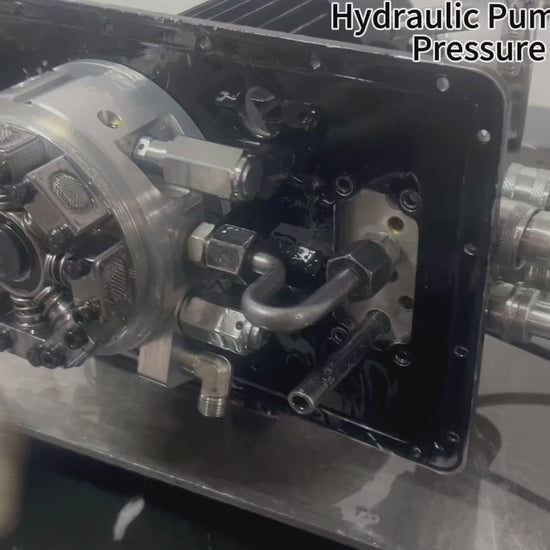

Radial Piston Pump Assembly For Hydraulic Torque Wrench(RB) is a three-stage pump group, it's usually consists of 4 MPE plunger valves and 4 MPB plunger valves.
These plunger valves independent of each. It is equipped with high&low load relief valves and filter hood. It is connected to a motor through a flange, driven by the motor.It supports a large flow output.
Its installation mode is oil-immersed, which is often used to drive a hydraulic torque wrench.
⛳Three core technical advantages of our element:
✔ Military-grade material technology: By nitrided alloy steel and surface hardening treatment process, the hardness reaches over HRC60, which is 3 times more wear-resistant than conventional parts;
✔ Modular intelligent design: replaceable plunger pair structure, when the pump body performance declines, no need for replacing the whole machine. Element replacement for restoring the performance, saving up to 70% of maintenance costs.
✔ Adaptive sealing system: Equipped with double O-ring seal & stepped oil outlet valve, it maintains dynamic sealing integrity in the operating range of -40℃ to 120℃.
⛳Perfectly compatible with the full range of Hawe hydraulic pump systems.
Ⅰ: With Filter Screen: MPE4,MPE5,MPE6,MPE7,MPE8,MPE9,MPE10.
⛳Perfectly compatible with the full range of Hawe hydraulic pump systems.

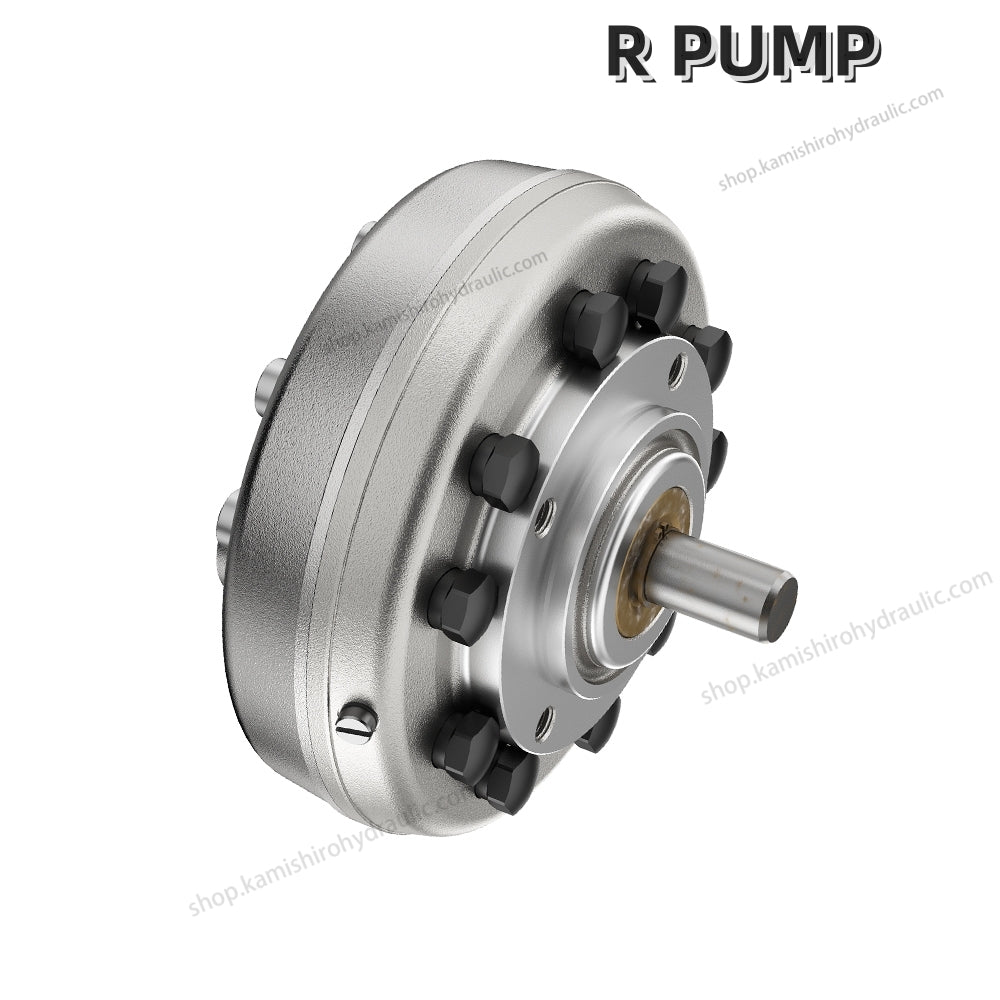

These Element are perfectly compatible with the full range of Hawe hydraulic pump systems, from compact R series radial pumps to high-performance SAP axial pumps, providing a powerful power core for global industrial equipment. Each set of products has passed 10,000 pressure cycle tests, and the average trouble-free working time exceeds 20,000 hours.
⛳Main model of Kamishiro HAWE Piston Pump Element:（PE Series）
⛳Main model of Kamishiro HAWE Piston Pump Element:（PE Series）
Ⅰ: With Filter Screen: MPE4,MPE5,MPE6,MPE7,MPE8,MPE9,MPE10.
Ⅱ: Without Filter Screen: MPE4 HC, MPE5 HC, MPE6 HC, MPE7 HC, MPE8HC,
PE9 HC, MPE10 HC.
Ⅲ: With Straw: MPE4 HKL, MPE5 HKL, MPE6 HKL, MPE7 HKL, MPE8 HKL, MPE9 HKL, MPE10 HKL.
⛳Application Cases:
- In the hydraulic system of the continuous casting machine of Baowul Group Steel Plant in China, the wear of the KAMISHIRO PE13 Element was only 0.02mm after 18 months of continuous operation, which is far below the replacement threshold of 0.1mm in the
industry standard.
- The main pump of SANY Group SY215 excavator adopts R5.8.5.8.5.8.5.8 PE Element, and the failure interval is extended to 8000 hours.
⛳Products with inventory: Shipping Time in 72 hours
Kamishiro HAWE ELEMENT has strong production and inventory capabilities, and standard products can be delivered within 72 hours.
Quality Assurance and Certification
✅Each set of Hawe pump element carries the precision manufacturing tradition of Kamishiro Company.
✅Raw material traceability: American 1144 special steel + German Freudenberg seals.
✅Production process: CNC five-axis machining center + ion nitriding treatment + 100% online pressure testing.
✅ Quality certification: ISO 9001:2015
✅ Life commitment: 5 years or 20,000 hours of service life under normal working conditions.
We provide exclusive protection for customers:
✅ 15-day unconditional return and exchange (not installed and used)
✅ 12-month quality assurance period
